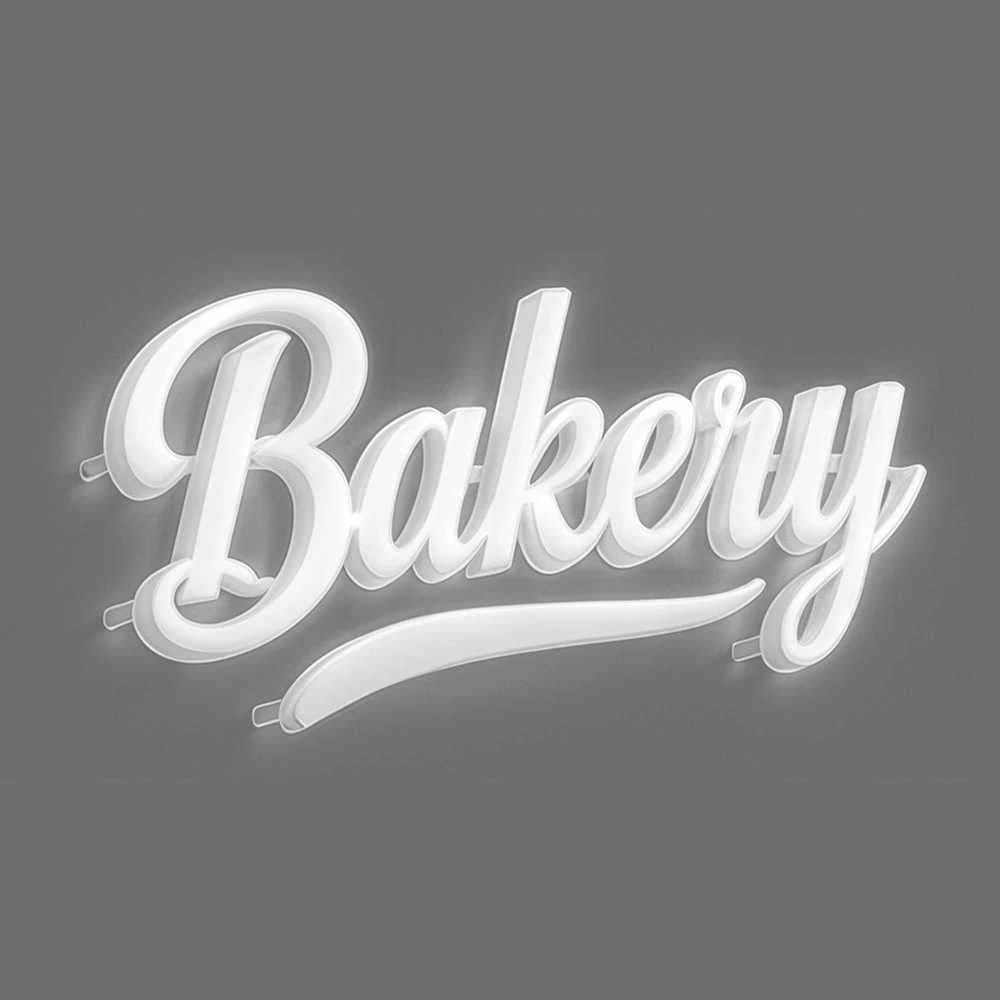

Outdoor LED Signs classic model 2

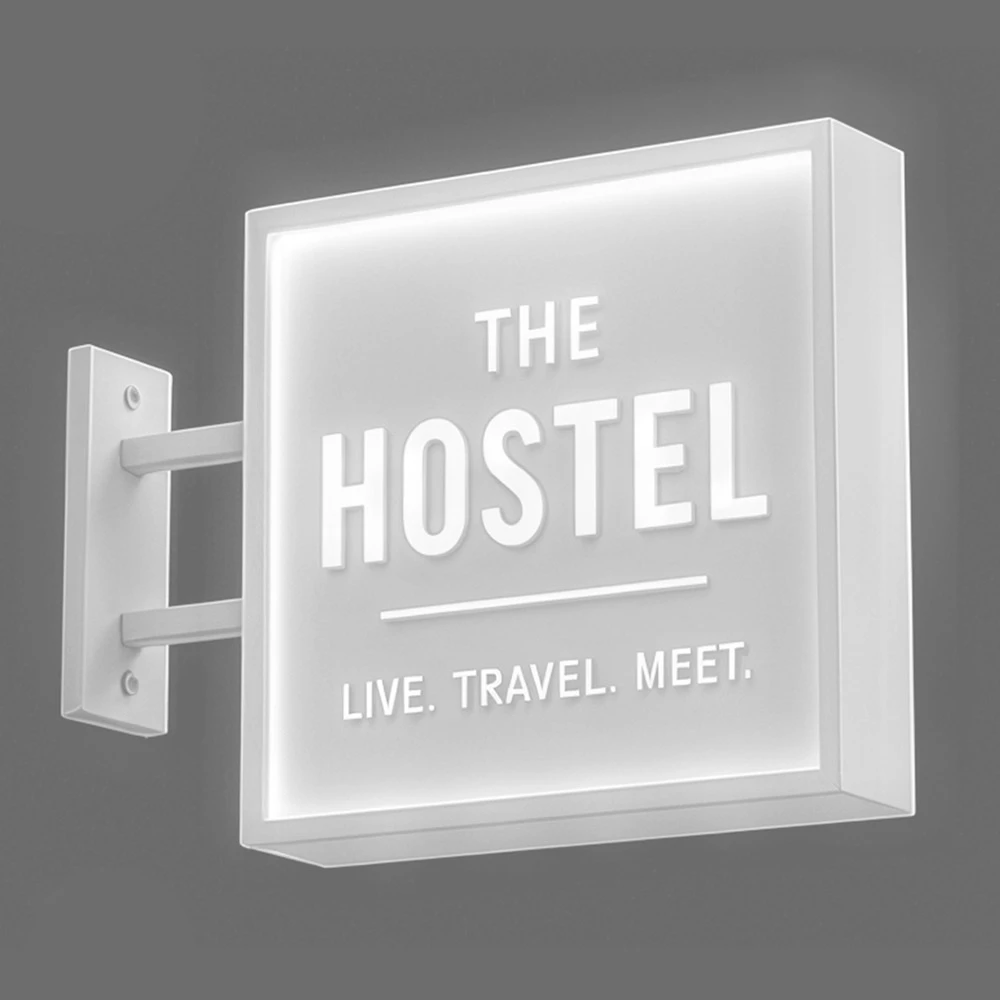

Outdoor LED Signs classic model 3
Outdoor LED Signs classic model 4

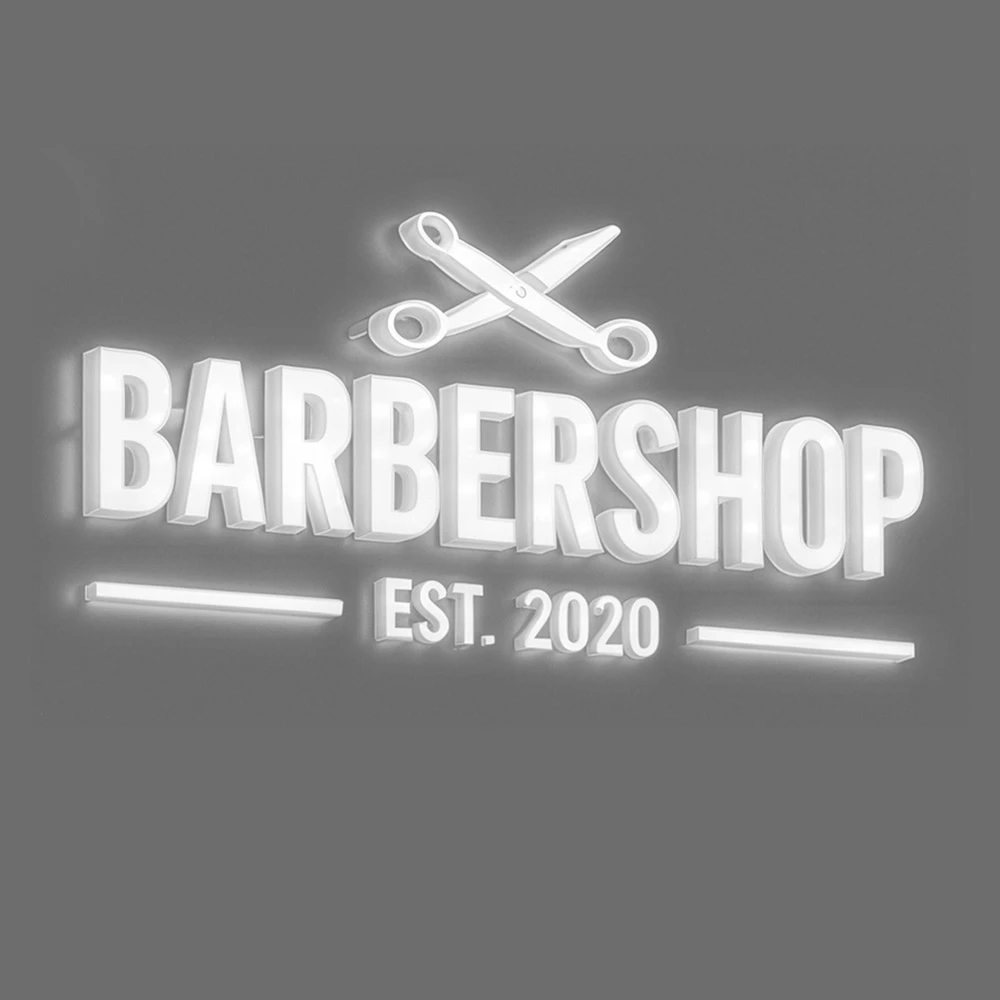

Outdoor LED Signs classic model 5
Outdoor LED Signs classic model 6
Outdoor LED Signs classic model 7
Outdoor LED Signs classic model 8
LED Outdoor Signage: How to Choose the Right Sign
Good outdoor signage does more than light up a property — it makes the business easier to see, recognize, and remember. A commercial sign has to read cleanly, fit the architecture, reflect the brand, and hold up under real jobsite conditions. That is why outdoor LED signs should be treated as a complete visual system rather than an afterthought.
For custom outdoor LED signs, the right place to start is the site itself: facade dimensions, viewing distance, traffic flow, ambient light, mounting conditions, electrical access, permitting, and zoning. For LED signs for business, that keeps the specification tied to how the sign will actually perform in the field. 3D Sign Factory brings more than 25 years of manufacturing experience to every project, combining custom fabrication with engineering flexibility and direct production control.
Why Outdoor LED Signs Pay Off for Your Business
LED business signs outdoors keep businesses visible after dark and make storefronts easier to spot from the street. They also help a brand stand out. And unlike older lighting systems, LEDs use less energy and need less frequent replacement. Depending on the setup, they can cut energy consumption by around 50–70% compared with fluorescent lighting. Many LED products are rated for 50,000 hours or more. That means fewer replacements, less maintenance, and potentially lower ownership costs over the life of the sign.
Types of Custom LED Signs We Build
The best custom LED signs are produced around the facade, viewing distance, mounting surface, and visual hierarchy instead of forcing every company into the same template.
Channel Letters and 3D Illuminated Letters
Channel letters give commercial signage its depth and character. Each letter is built separately, with the face, aluminum returns, depth, and LED layout tailored to the design. Go with front lighting, a halo effect, or a combination of both. From storefronts and diners to hotels and office buildings, a custom LED sign made of channel letters gives a business name real presence on the facade. And when customers pull into the lot after dark, good lighting makes all the difference.

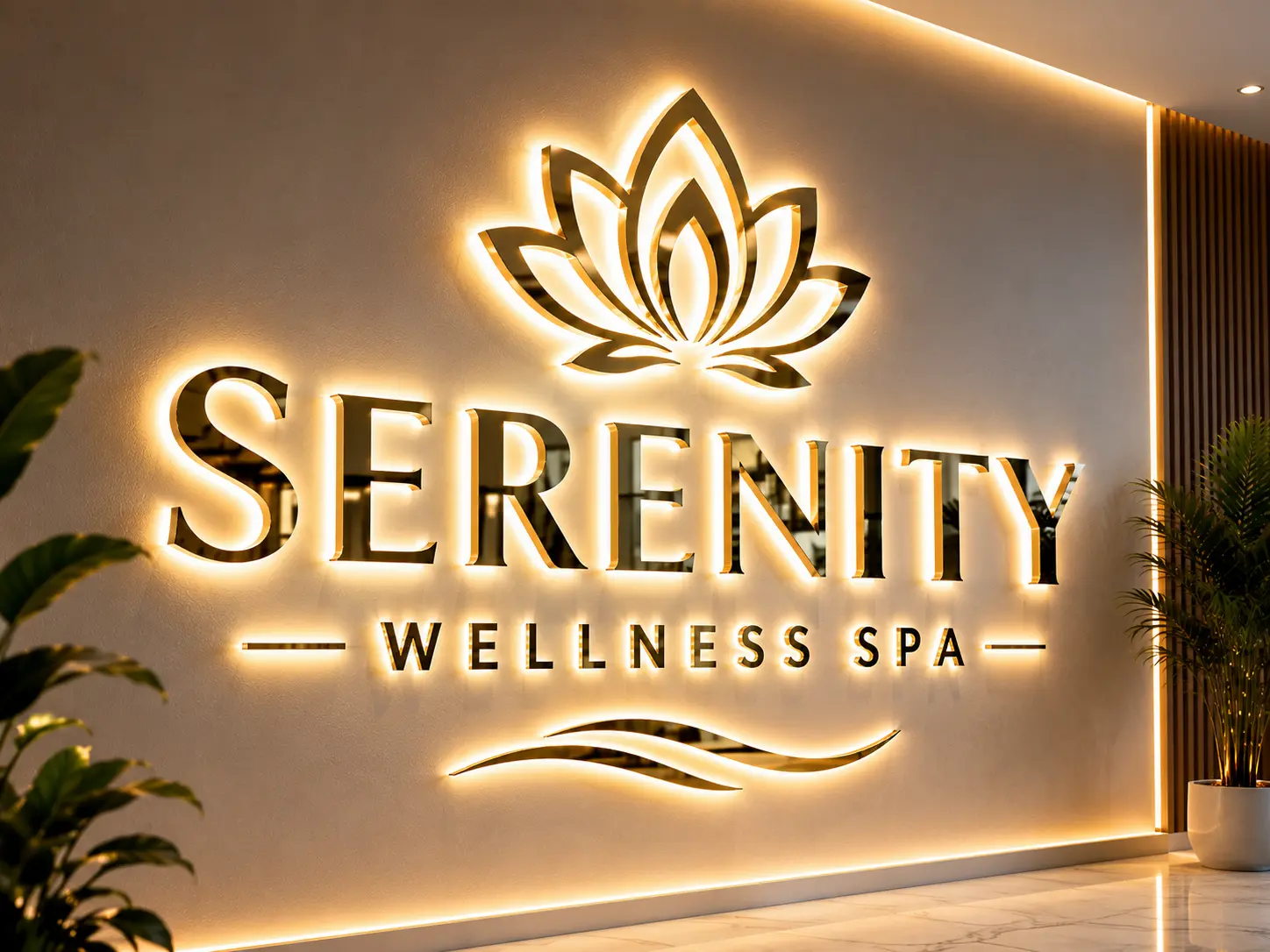

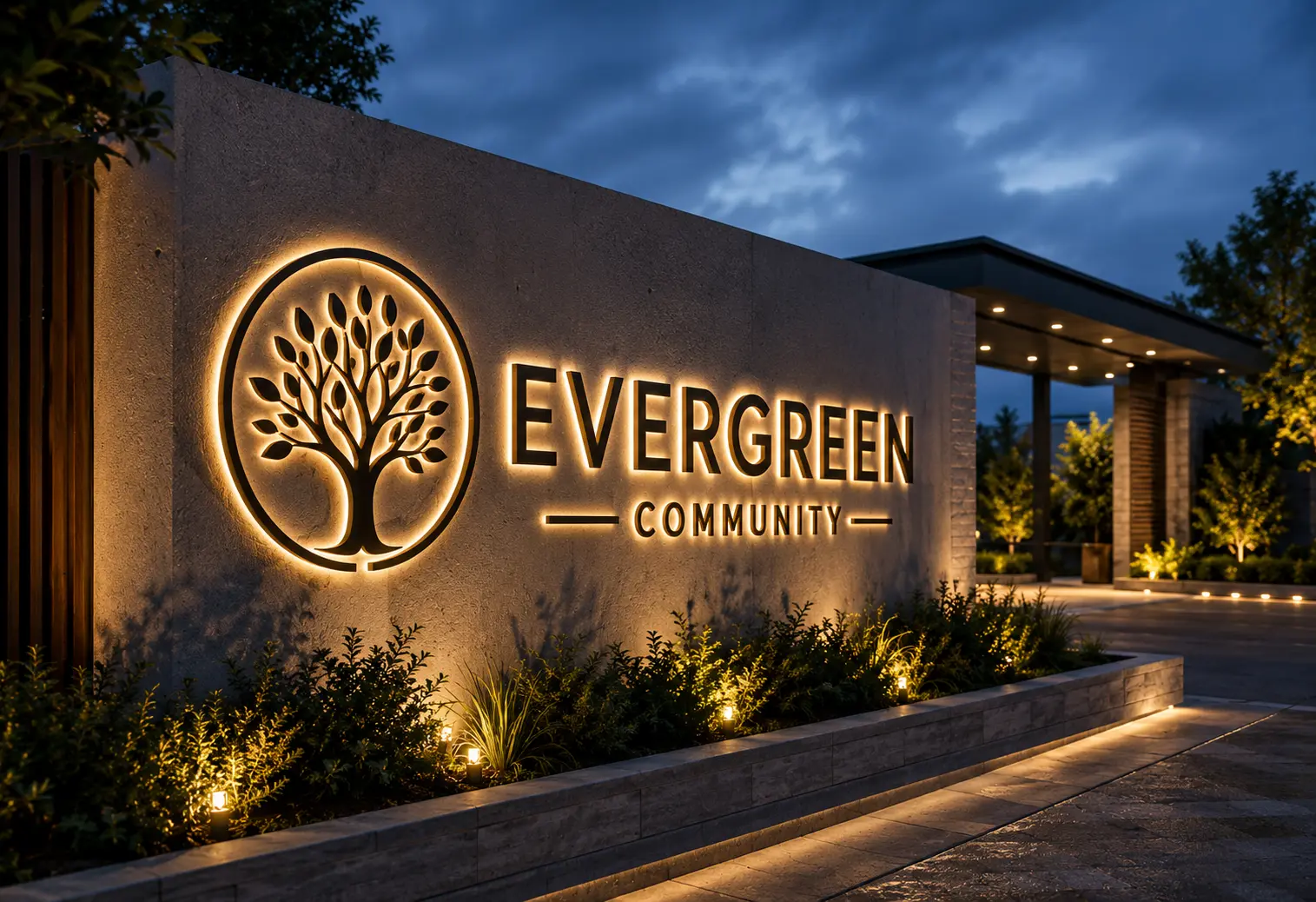

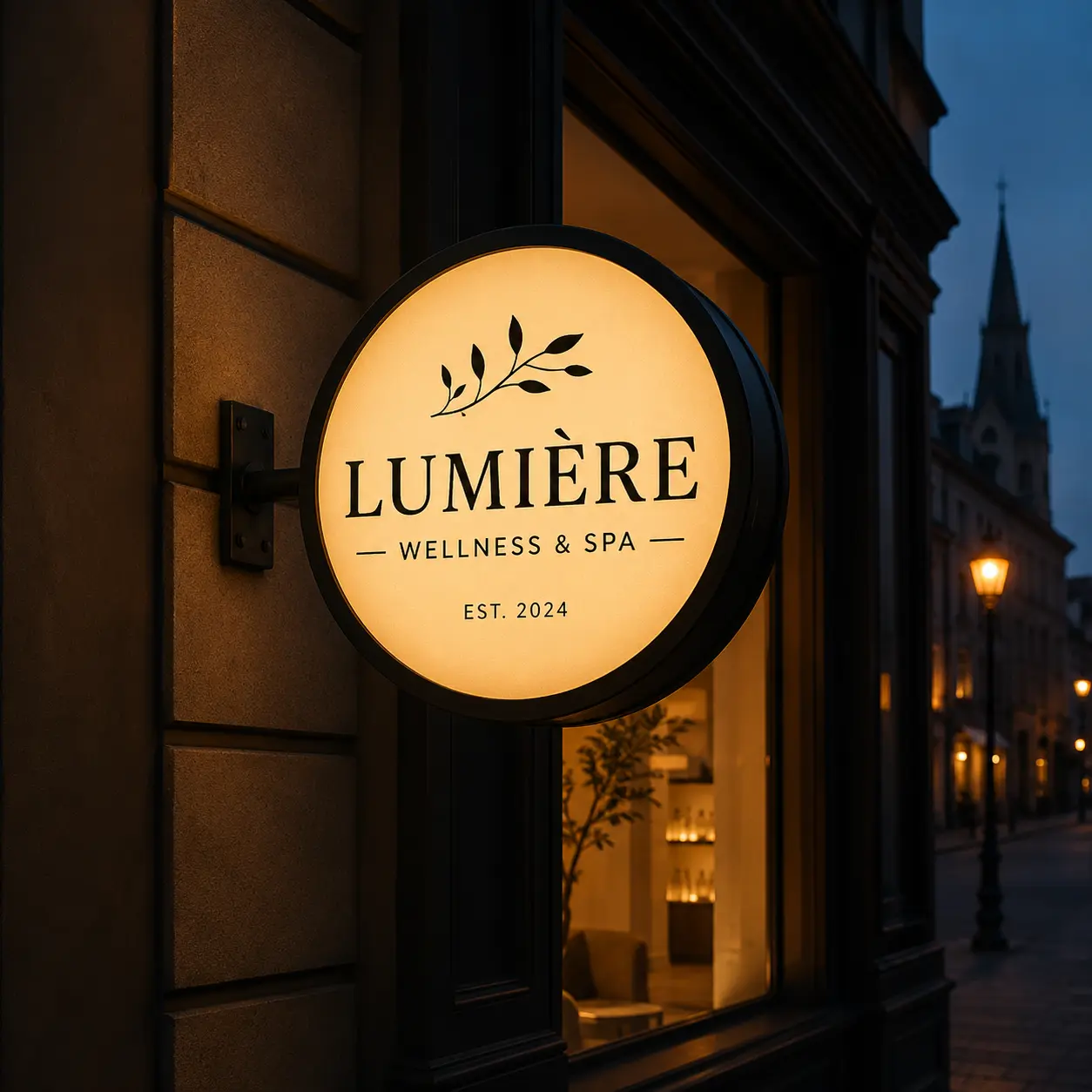

Outdoor LED Backlit Signs and Halo-Lit Logos
Halo effect is all about restraint. LEDs sit behind the letters, throwing a clean wash of light onto the wall instead of blasting the face of the sign. The result is crisp, dimensional, and easy on the eyes. It is a strong fit for hotels, offices, and modern commercial facades. The sign has presence without stealing the show. Halo-lit letters are typically mounted on stand-off spacers. Done right, outdoor LED backlit signs feel built into the architecture — not bolted onto it.

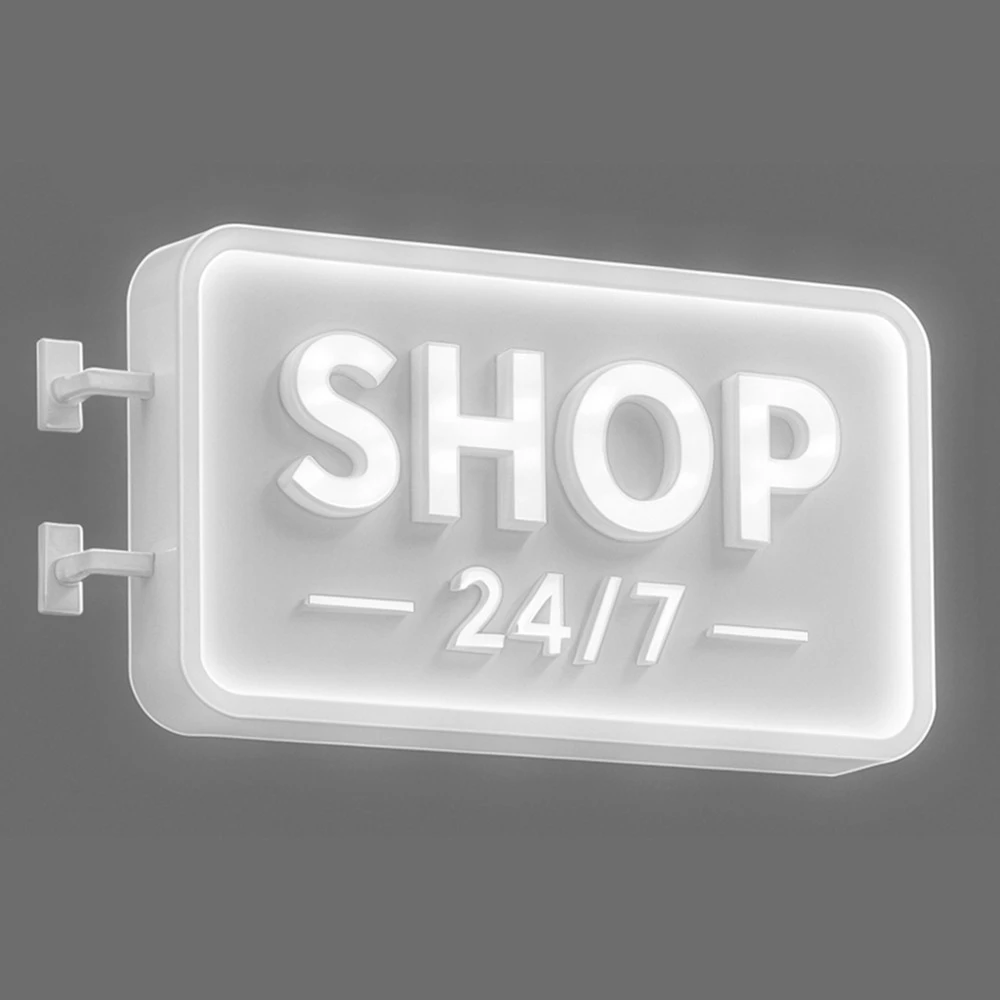

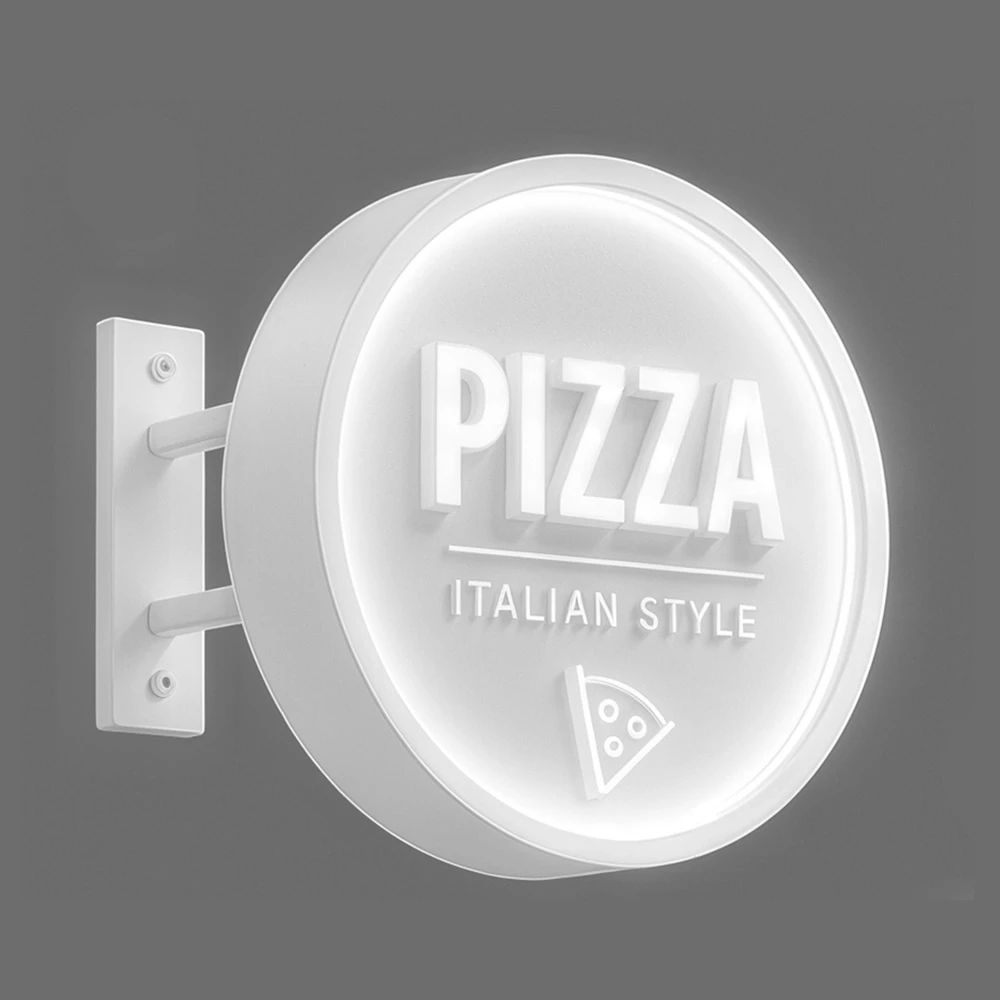

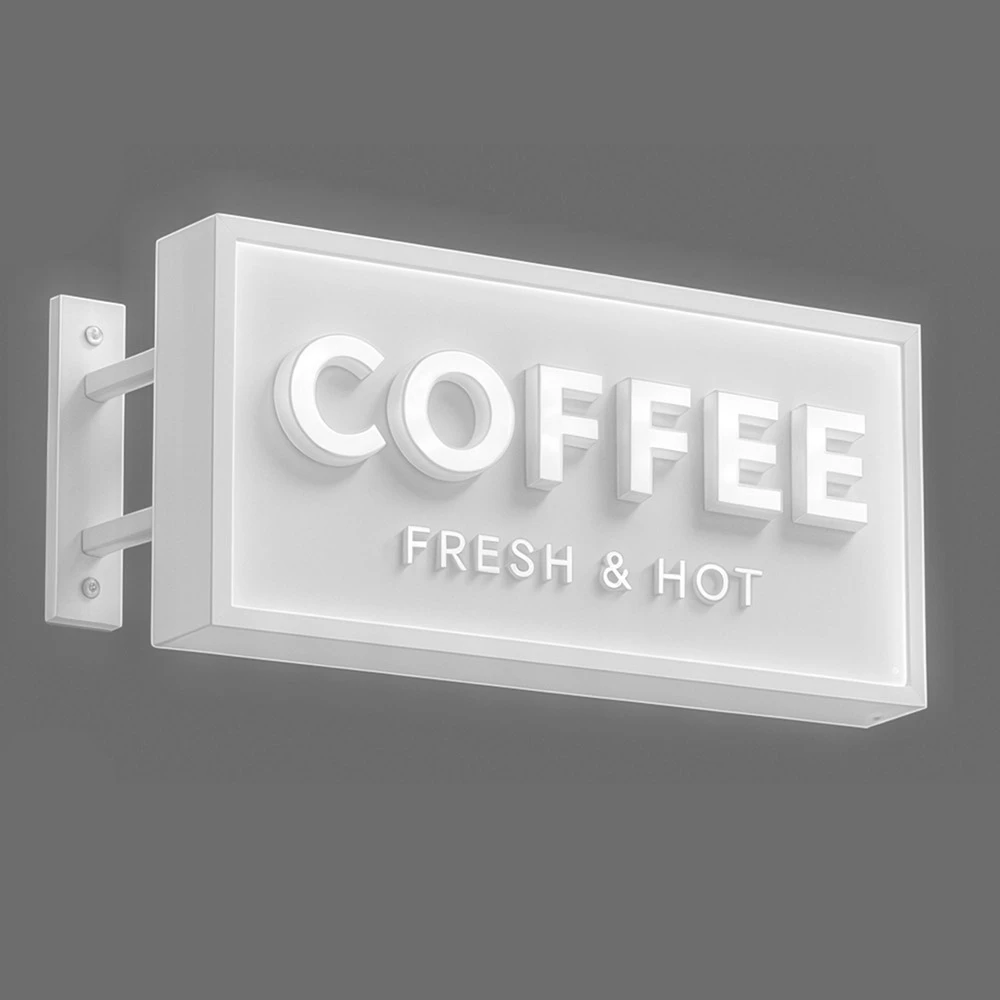

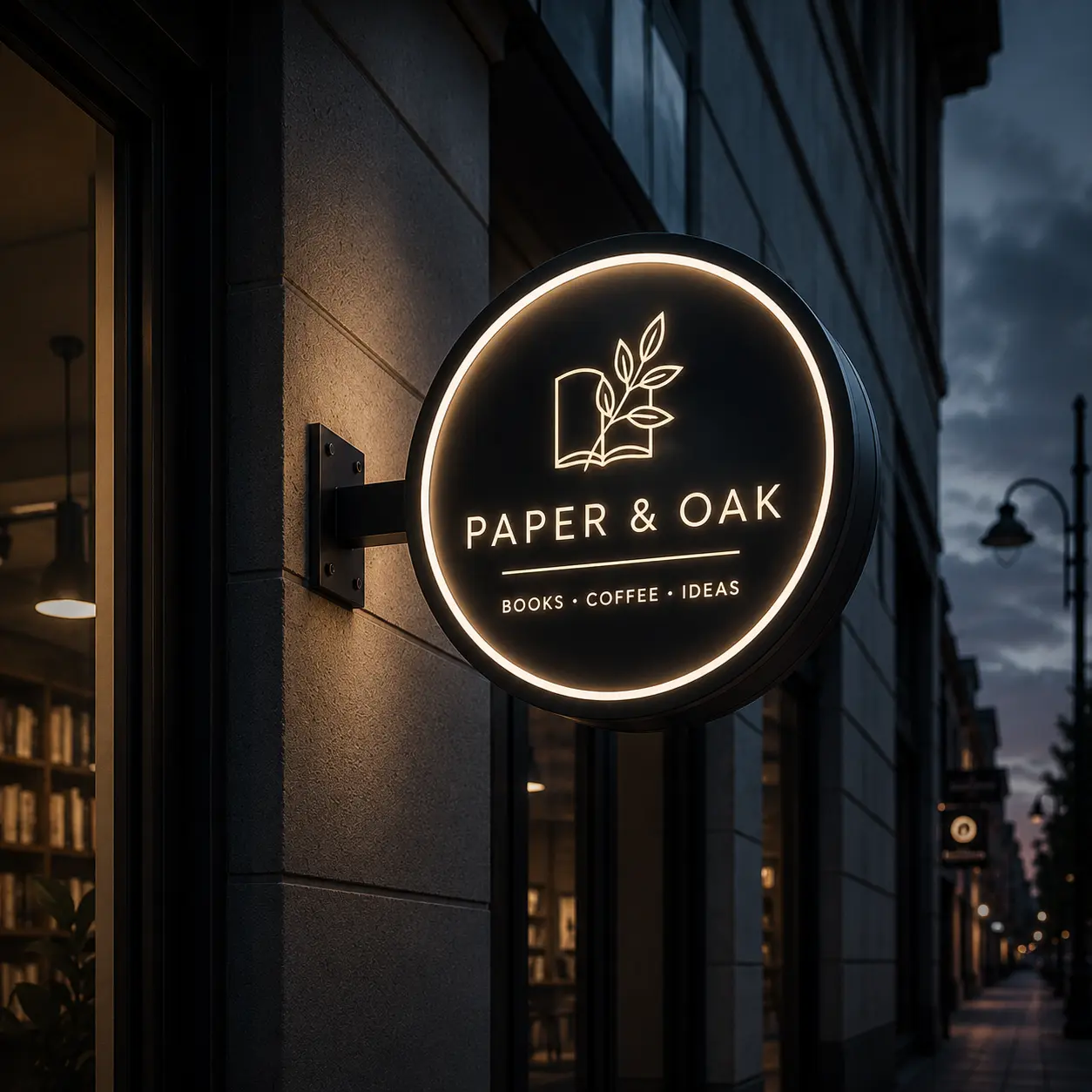

Lightboxes and Cabinet LED Business Signs
Cabinet signs pack plenty of visual punch into a single illuminated box, making them a solid choice for oversized graphics and multi-tenant properties. LED business signs of this type combine aluminum construction, acrylic or polycarbonate faces, internal LED modules, and custom graphics, with wall-mounted, pole-mounted, monument, or pylon installation options.

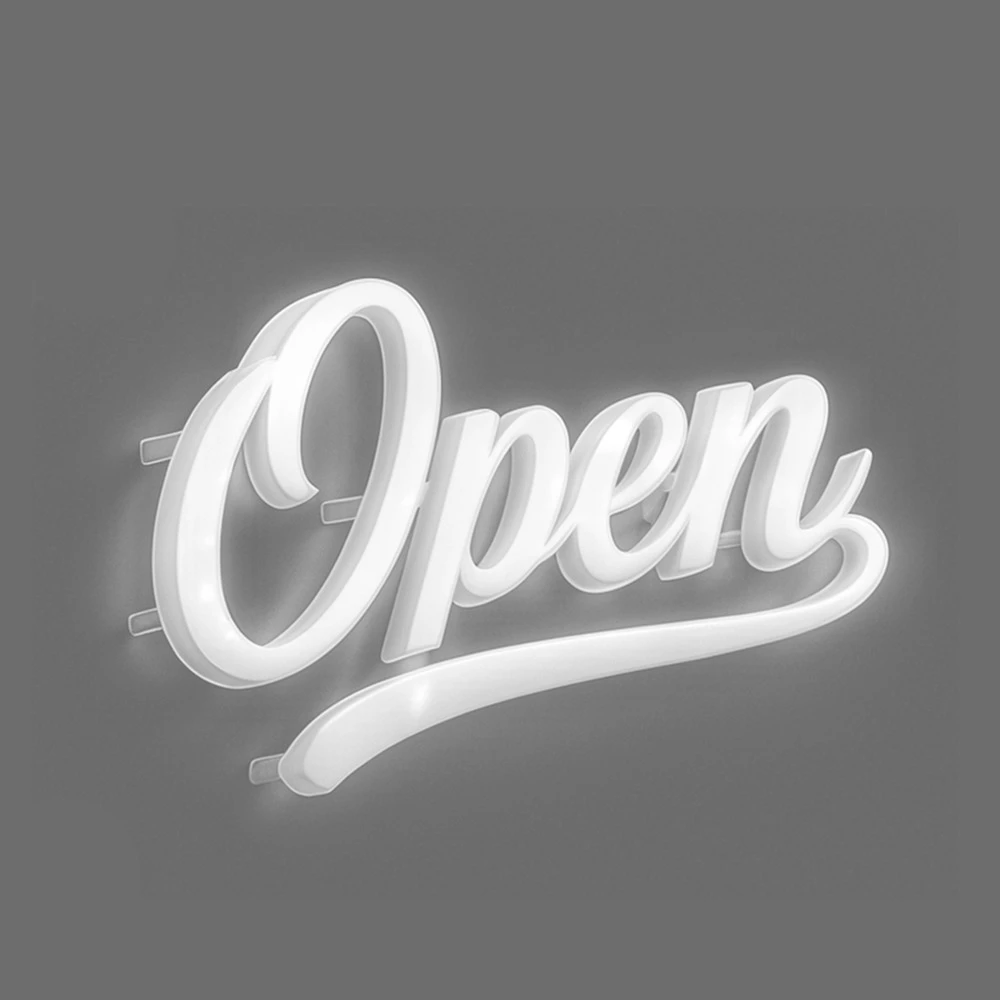

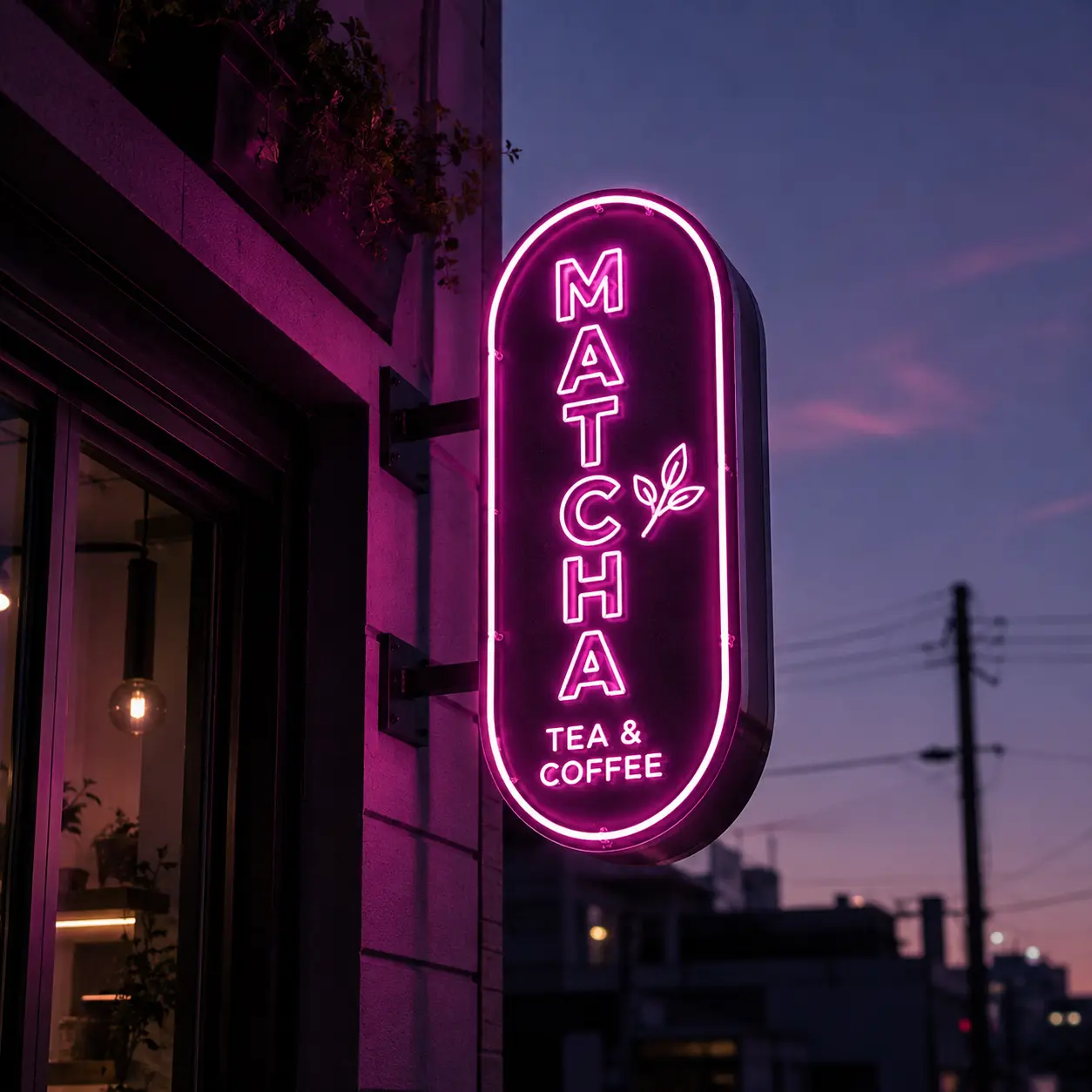

LED Neon-Style Signs
Neon has attitude. LED neon gives you the same visual punch without the old-school maintenance. It is made of flexible silicone LED neon with IP-rated moisture protection. Custom colors, lettering, shapes, and mounting let the sign follow the company instead of forcing the brand into a stock format.
A red LED sign can be a real eye-catcher for an eatery, bar, hotel, or retail space — especially when color already has a place in the brand.
Programmable Digital LED Displays
Sometimes the signage has to do more than sit there. Digital displays can rotate promotions, prices, schedules, announcements, or community updates without changing the hardware.
Pixel pitch, brightness, viewing distance, and content all matter. A roadside display has a very different job than a screen meant for pedestrians standing ten feet away. Outdoor displays typically run at 5,000–8,000 nits, with a pixel pitch of 6–20 mm depending on viewing distance.

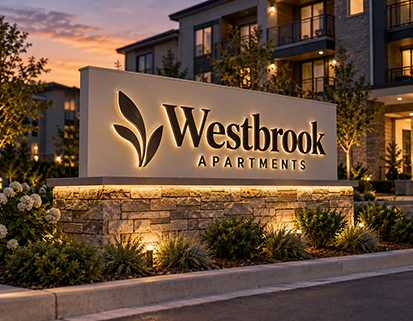

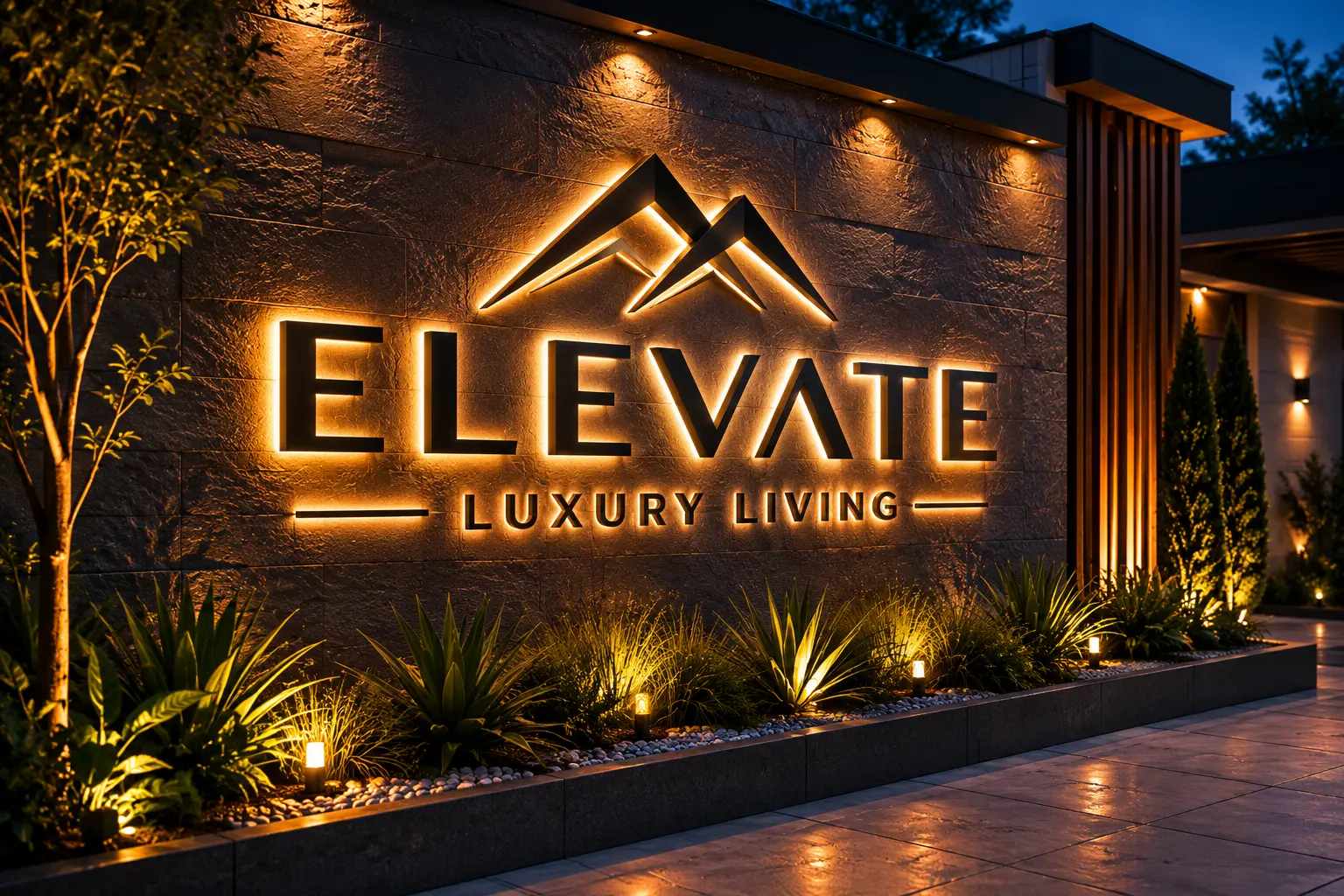

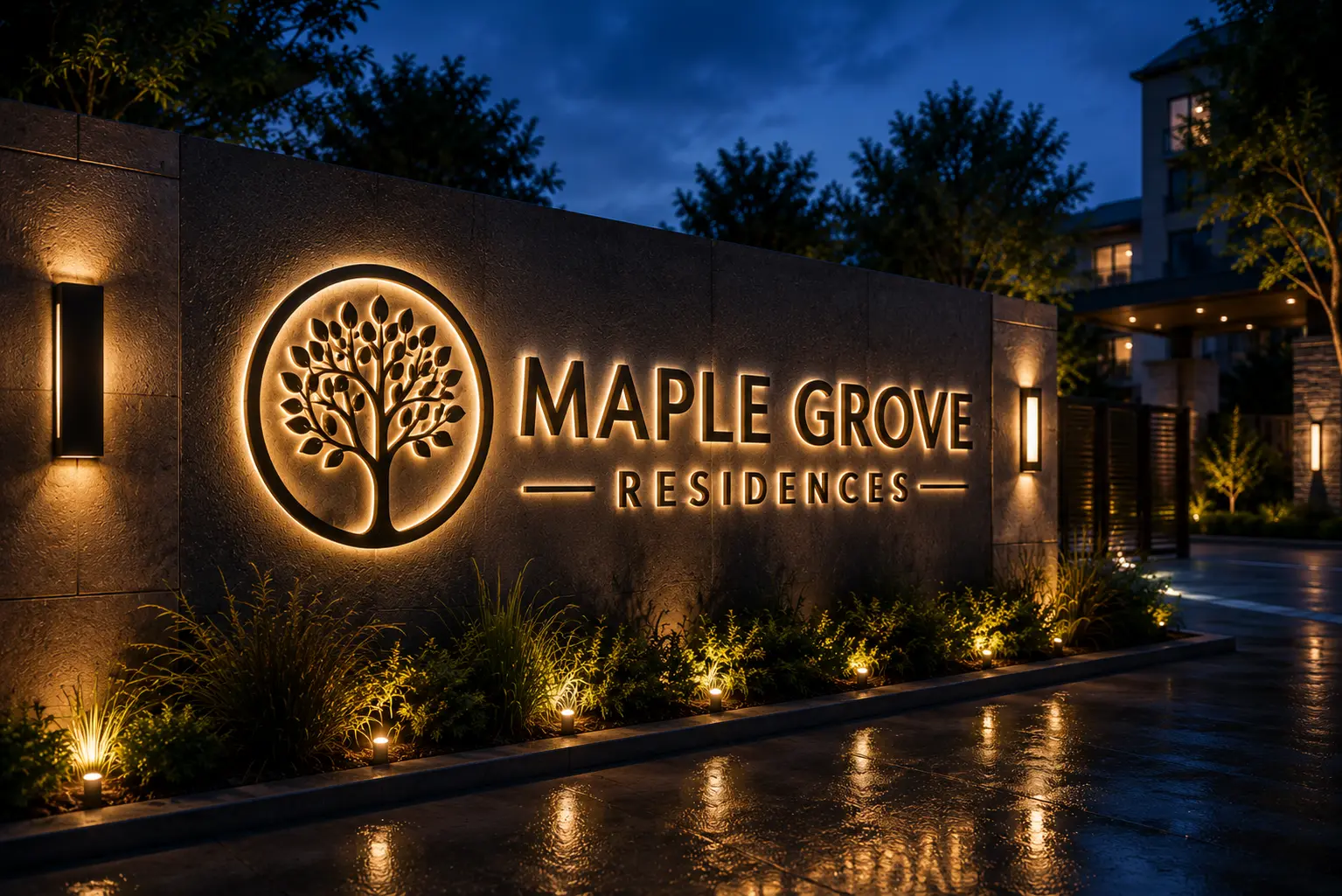

Large Outdoor LED Signs: Monument and Pylon Signs
Big properties demand big visibility. Large outdoor LED signs can pull branding and wayfinding into one system on shopping centers, dealerships, campuses, and residential communities.

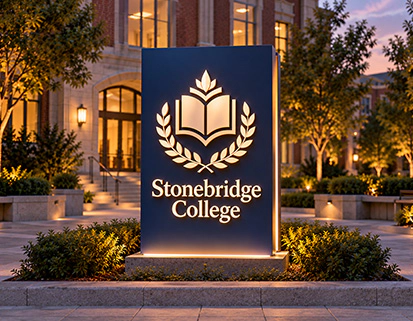

Monument signs keep the profile low and architectural. Pylon signs go higher and reach farther, putting the property on the radar of passing traffic.
Before fabrication, we nail down the structural side — wind load, anchoring, viewing distance, mounting conditions, and site constraints. Groundwork matters once the sign is out in the real world.
Commercial LED Signs for Every Industry
Eateries have to catch eyes after dark. Retailers must win the storefront battle. Offices and clinics usually go for a cleaner, more polished look. The signage has to complement the brand — and the street it sits on.
That is where commercial LED signs earn their keep: built around the property, the audience, and how people actually approach the business.

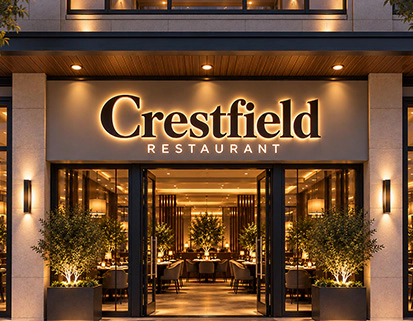

Best Outdoor LED Signs for Restaurants
For food establishments, the dinner rush is the money window. A sign should pop from the road, read fast, and still look right against the facade. Restaurant outdoor LED signs have to work at night first.
Best outdoor LED signs for restaurants can mean aluminum or acrylic channel letters, a dimensional logo, a lightbox, LED neon, or a mix. The right setup depends on the storefront — not a cookie-cutter package.
For a high-traffic location, LED restaurant signs outdoors should also be evaluated for viewing distance and brightness. A sign that looks perfect at ten feet may disappear from view at the entrance to a shopping center.

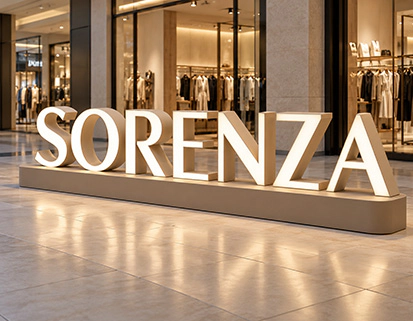

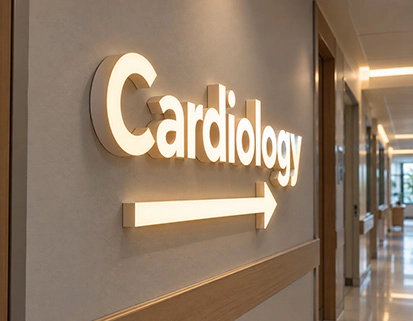

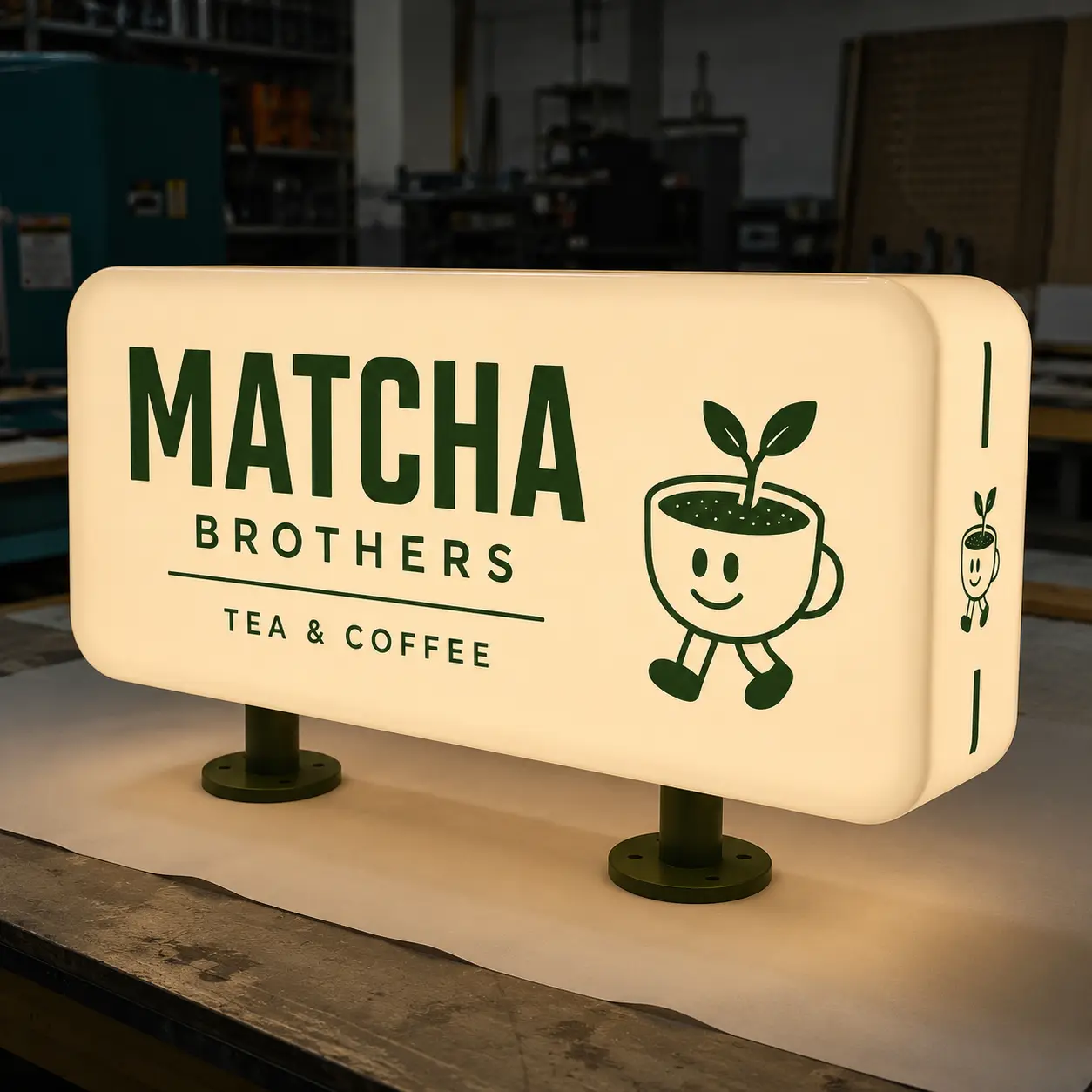

Custom LED Signs for Retail Shops, Offices and Clinics
Retail signage needs to draw attention from the street without competing with the building’s architecture. The storefront should stand out, but not at the expense of the overall design. Offices and clinics usually call for a more refined look: clean lines, easy readability, and consistent branding do the heavy lifting.
Custom outdoor LED signs for shops and businesses can work as dimensional letters, a wall sign, a monument, or a tenant directory. A single LED business sign design can be replicated across different facades for multi-location brands without losing the look. From storefronts to medical offices and mixed-use properties, business LED signs outdoors should be built around the site — not forced into a one-size-fits-all format.
Exterior LED Signs Built for Florida Weather
Florida puts outdoor signage through a demanding combination of heat, humidity, UV exposure, heavy rain, salt air, and strong wind. Exterior LED signs therefore require more than an attractive face; the enclosure, materials, electrical components, mounting, and structural attachment all matter.
| Consideration | What to Evaluate |
|---|---|
| Weather protection | IP65/IP67-rated components for outdoor use, where appropriate |
| Materials | Aluminum, acrylic, polycarbonate and corrosion-resistant hardware, including NEMA 4X enclosures for coastal conditions |
| UV exposure | UV-resistant finishes and components for prolonged outdoor exposure |
| Brightness | Output in nits based on ambient light and viewing conditions |
| Viewing distance | Letter height (rule of thumb: 1 inch per 10 feet of viewing distance), stroke width, contrast and display specifications |
| Digital displays | Pixel pitch, brightness, content and viewing distance |
| Structural requirements | Site-specific wind-load calculations under the Florida Building Code and ASCE 7; mounting and anchorage; engineer-signed and sealed calculations where required; Miami-Dade and Broward HVHZ requirements, where applicable |
| Electrical compliance | Applicable UL 48 requirements, NEC Article 600, and relevant Florida electrical code requirements |
Not every sign requires the same protection level or construction method. The specification should match the environment, sign type, mounting location, and applicable code requirements. That is what makes LED outdoor signage last in Florida.
How to Choose the Right LED Outdoor Sign
Choosing the right LED outdoor sign starts with how people will encounter it. A pedestrian approaching a storefront has different requirements from a driver passing at highway speed.
We look at the details of LED signage outdoors before production:
- Viewing distance: How far away should the sign be readable?
- Mounting height: Does the letter scale make sense from elevation?
- Ambient light: Streetlights, parking lots, and neighboring signage can change how bright your sign actually looks.
- Color contrast: Brand colors are expected to hold their own in daylight and after dark.
- Illumination style: Front-lit, halo-lit, backlit, cabinet, or digital — each gives the property a different look.
- Site conditions: Wall structure, power access, drainage, exposure, and wind load all affect fabrication.
- Permits and zoning: Local rules on size, placement, and illumination shape the design from the start.
And then there is the temptation of LED signs for sale. They may look like a quick win, but a stock sign does not know your facade, your company, or the realities of the jobsite. Custom fabrication does.
LED vs. Neon vs. Non-Illuminated Signage
| Feature | LED | Neon | Non-Illuminated |
|---|---|---|---|
| Night visibility | Excellent | Excellent | Limited |
| Energy use | Low | High | None (no power) |
| Design flexibility | High | Medium (glass-bending limits) | High |
| Lifespan & maintenance | 50,000–100,000 hours, minimal maintenance | Glass tubes and transformers may require periodic service or replacement | Long lifespan, minimal maintenance |
| Digital integration | Available | Not applicable | Not applicable |
| Dimming / control | Available | Limited, depends on system | Not applicable |
| Best use | Modern commercial visibility | Classic decorative appearance | Daytime-focused signage |
The right sign comes down to the building, the business, the budget — and what the sign has to deal with day to day. In the real world, LED hits a useful sweet spot: strong visual impact, easy control, lower energy use, and less hassle over time.

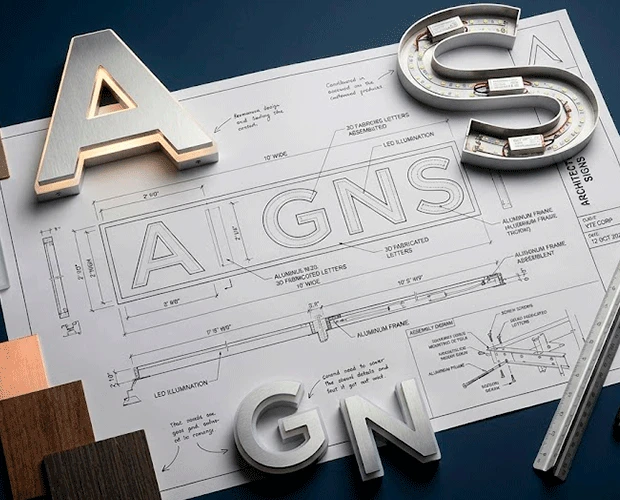

How We Make Custom LED Signs: From Sketch to Install
A finished sign may look straightforward. Getting there is not. CAD, materials, mounting, power, illumination — a lot has to line up before anything hits the shop floor.
- Project Brief. We start with the essentials: artwork, dimensions, site photos, mounting, viewing distance, and illumination style.
- Design and Mockup. Proportions, letter depth, returns, colors, and light distribution are worked out in the mockup.
- Engineering and CNC Fabrication. Once approved, the design moves into CNC routing, precision cutting, and forming for accurate production.
- LED Integration. Then comes the lighting — LED modules, wiring, and power supplies, laid out to avoid hot spots and dead zones.
- Quality Control. Before shipping, we test the lighting and check finish, dimensions, and assembly.
- Delivery and Installation Support. Signs ship protected and pre-assembled, so installation crews can mount them quickly — often in a single day.
Why Choose 3D Sign Factory for LED Signs for Business
With 25+ years of experience, 3D Sign Factory handles the work in-house. That means fewer handoffs, tighter quality control, and one team accountable for the finished product. One-off fabrication, unusual dimensions, tight budgets, pre-assembled components, or a jobsite that is not quite ready — we tailor the process around the project, not the other way around. What clients get with 3D Sign Factory:
- Custom fabrication with no cookie-cutter limitations
- Pre-fabricated signage for a smoother install
- A dedicated account manager from start to finish
- In-house engineering, production, and quality control
- Fast, accurate estimates — even for complex scopes
- Flexible solutions for different budgets and site conditions
- Free storage when the jobsite needs time
- Material and lighting guidance from an experienced team
- Warranty and post-sale support
Recent Commercial LED Sign Projects
Every property has its own visibility challenge. These projects show how the right sign strategy solves it.
Boutique Storefront: Making the Brand Stand Out
After the new illuminated logo and dimensional lettering went up, the owner saw more foot traffic. The entrance gained curb appeal and finally matched the quality of the store inside.
Dining Establishment: Making the Location Work After Dark
By day, the eatery was easy to spot. After sunset, it practically disappeared from the parking lot. Custom illuminated letters changed that with strong contrast, controlled brightness, and a clean front-lit face that stayed readable without washing out the facade.

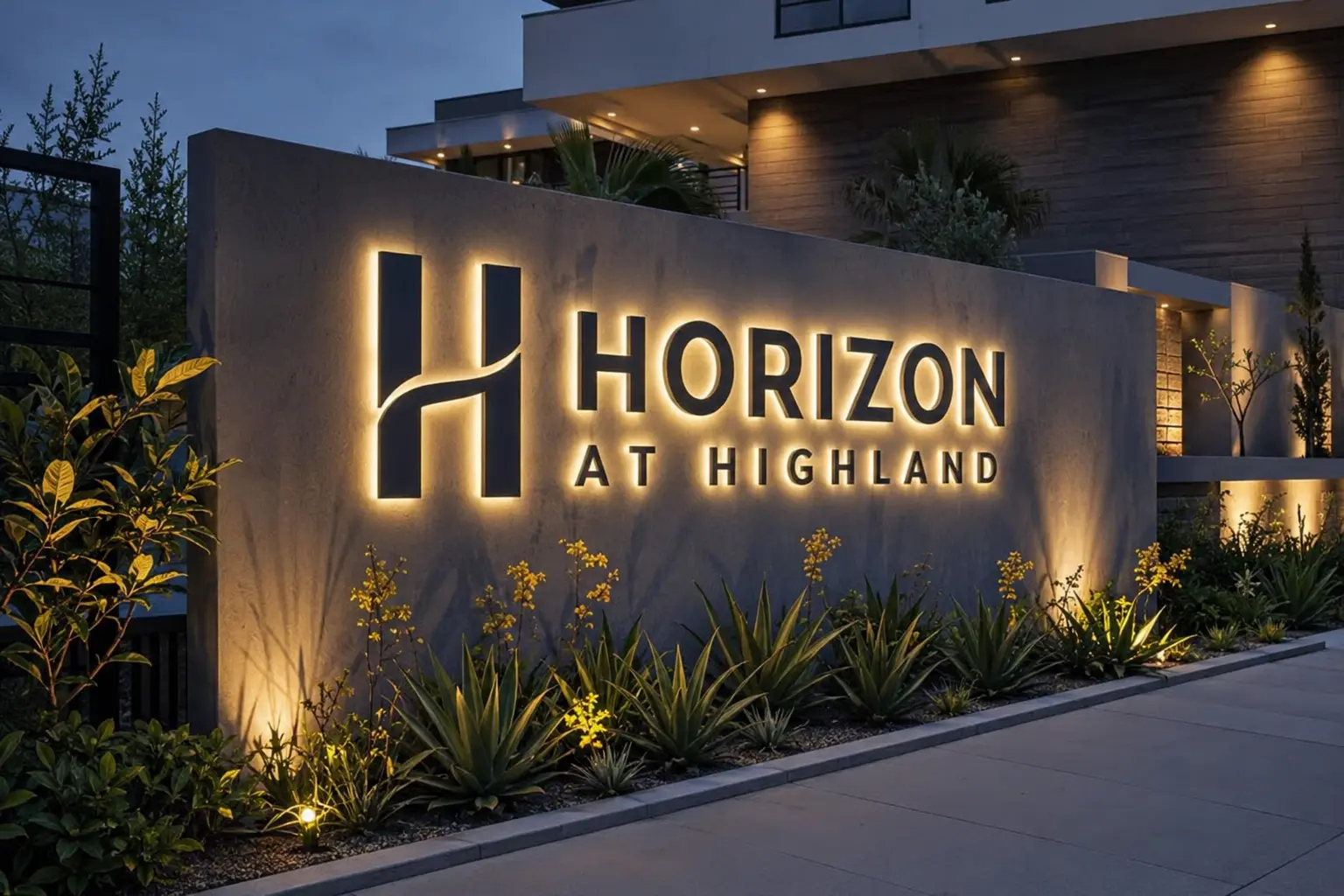

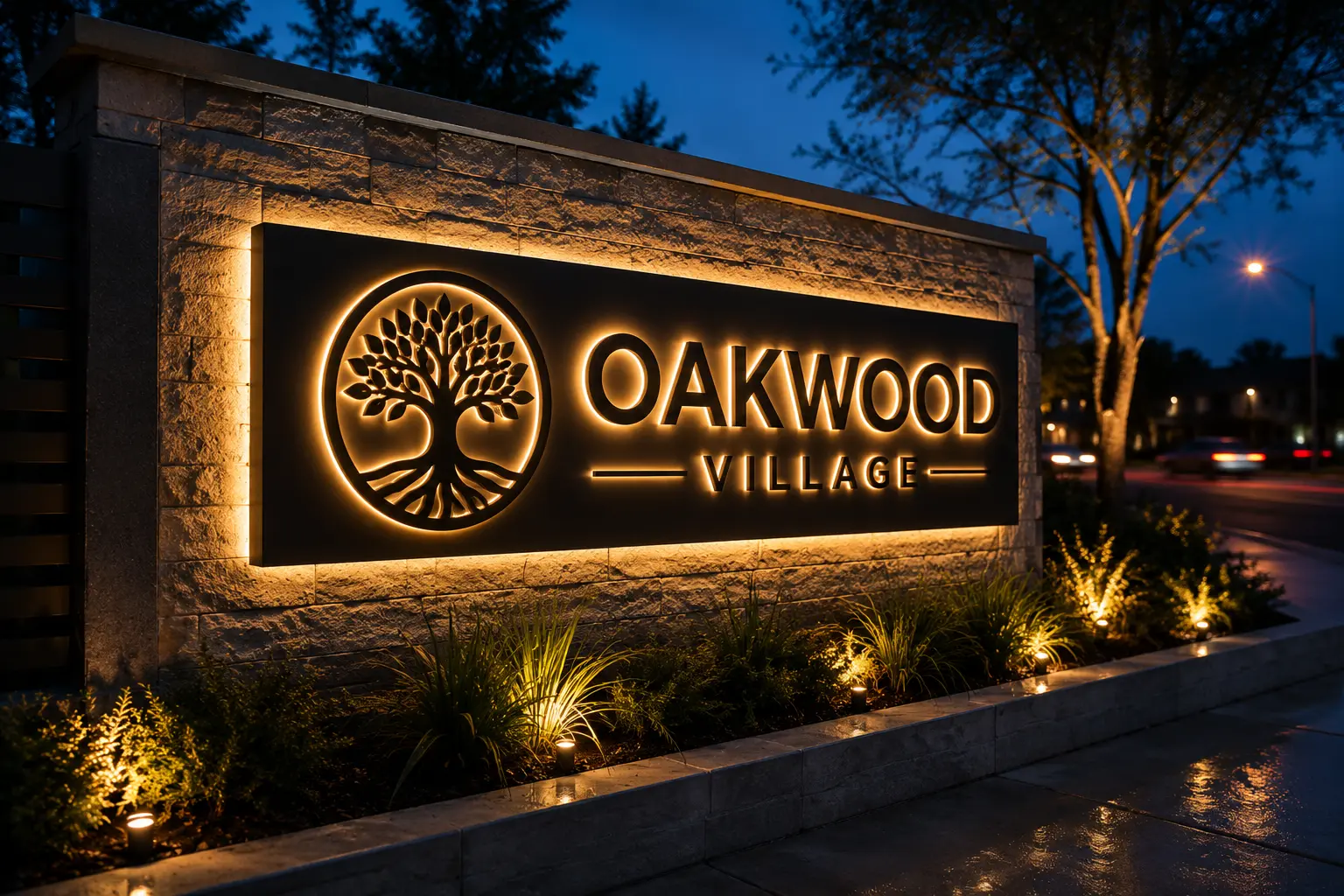

Residential Community: Clearer Wayfinding for Visitors
After dark, the entrance was easy to miss, and drivers could pass right by without realizing they had found the place. A custom backlit monument changed that, pairing a matte black finish with crisp lettering and a clear sightline from the road. Good sign design is as much about placement and legibility as it is about looks — the sign has to work when someone is behind the wheel, not just in a photo. The result is a landmark that feels like it belongs there, gives the property a stronger presence, and makes finding the entrance a whole lot easier.
